The effectiveness of a gaseous fire suppression system depends not only on how much extinguishing agent is installed, but more importantly on whether the protected enclosure can “retain” the extinguishing concentration.
In critical spaces such as data centers, server rooms, archive storage facilities, museums, and precision laboratories, gaseous fire suppression systems are often regarded as the final line of defense for protecting high-value assets. Many owners pay close attention to whether the alarm system is sensitive enough, whether the cylinder pressure is normal, and whether the nozzle arrangement is reasonable, yet they often overlook a more fundamental issue: once the extinguishing agent is actually discharged, is the protected enclosure sufficiently sealed to maintain the extinguishing concentration for an adequate period of time?

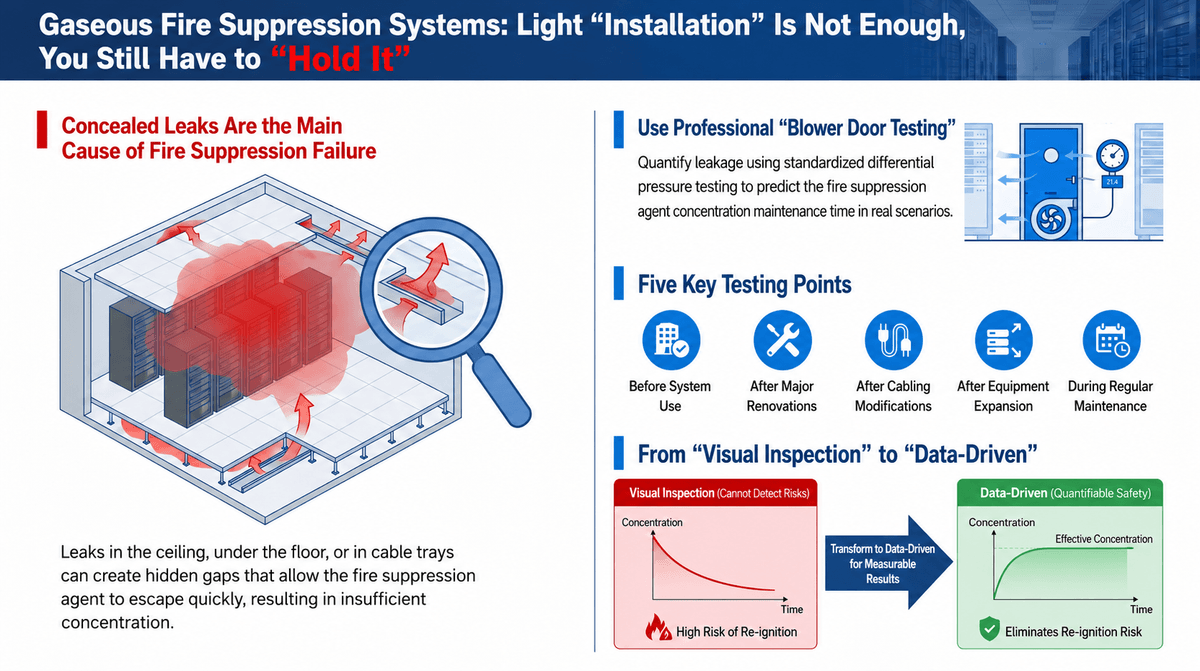

During project services, Shanghai OKRO frequently encounters such risks: although the server room may appear intact with complete doors and windows, concealed leakage paths often exist above suspended ceilings, within cable trays, around wall penetrations, beneath raised floors, along door gaps, and at inspection openings. Once a fire occurs, the extinguishing agent can rapidly escape due to pressure differentials and chimney effects, causing the concentration within the protected enclosure to fall below the effective extinguishing range prematurely. In such cases, although the system has “discharged,” it may not truly have “protected” the space.
According to international application requirements for clean agent fire suppression systems, enclosure integrity testing is commonly used to verify the agent retention capability of total flooding systems. For clean agent fire suppression enclosures, the key is not simply determining whether the room is “closed,” but obtaining leakage data through blower door testing and using this data to predict the concentration retention time after agent discharge.

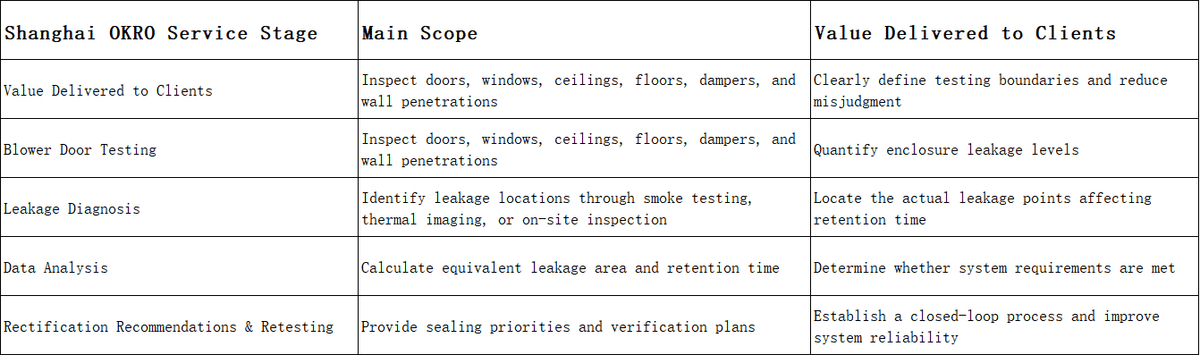

The enclosure integrity assessment provided by Shanghai OKRO goes beyond simple visual inspection. Through standardized pressure testing, leakage data analysis, and retention time prediction, “invisible air leakage” is transformed into technical conclusions that are measurable, traceable, and correctable. For data centers and critical asset spaces, this type of assessment represents a typical proactive risk management measure.
We recommend that any protected enclosure using FK-5-1-12, IG-541, inert gas, or other clean agent fire suppression systems should undergo enclosure integrity retesting before a new system is put into operation, after major renovations, after cable modifications, after server room expansions, and during regular maintenance periods. Buildings settle, seals age, and construction activities introduce new penetrations. Passing a test in the past does not necessarily mean the enclosure remains reliable today.

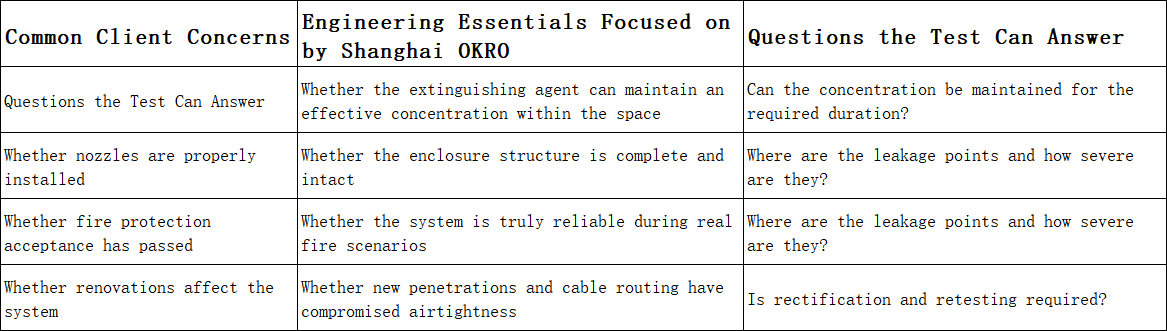

A professional enclosure integrity test can help owners identify weak points before a fire occurs, rather than discovering system failure only after an incident. Shanghai OKRO hopes to work together with data centers, server room operators, fire protection engineering contractors, and asset management teams to establish more reliable fire safety boundaries, ensuring that gaseous fire suppression systems are not only “installed,” but also truly able to “hold the line” at critical moments.
